Troubleshooting
LiftMaster Beeping? How to Replace the Backup Battery
By Omar, Factory-Trained Technician· Updated
A LiftMaster that chirps every 30 to 60 seconds is telling you the backup battery is dead. Replace the 485LM-style 12V battery in the motor head. The opener still runs on house power until you do.
Do this, in order
-
Unplug the opener and confirm the door is closed
Lower the garage door fully, then unplug the opener from the ceiling outlet. Working with the door down and the power off keeps the door from moving while your hands are inside the motor head.
-
Open the battery compartment
Find the battery door on the side or back of the LiftMaster motor head. On most belt and chain drive units it is a panel held by one or two screws, or a clip you press to release the cover.
-
Disconnect and remove the dead battery
Note which wire goes where, then unplug the red and black battery leads. Lift out the old 12V backup battery. It is sealed lead-acid, about the size of a small brick, so support its weight as it comes free.
-
Install the new 485LM-style battery
Seat the new battery in the same orientation, then connect the leads to matching terminals, red to red and black to black. The plug is keyed, so it only fits the correct way. Do not force it.
-
Close the compartment and plug back in
Refit the battery cover and screws, plug the opener back into the ceiling outlet, and let it charge. A new battery can take up to 24 hours to reach a full charge.
-
Clear the alert and test
The beeping should stop once the opener sees a healthy battery. Run one open and close cycle on house power, then unplug briefly to confirm the door still moves on battery backup.
Stuck, or the door is under spring tension? Stop and call (343) 700-1077.

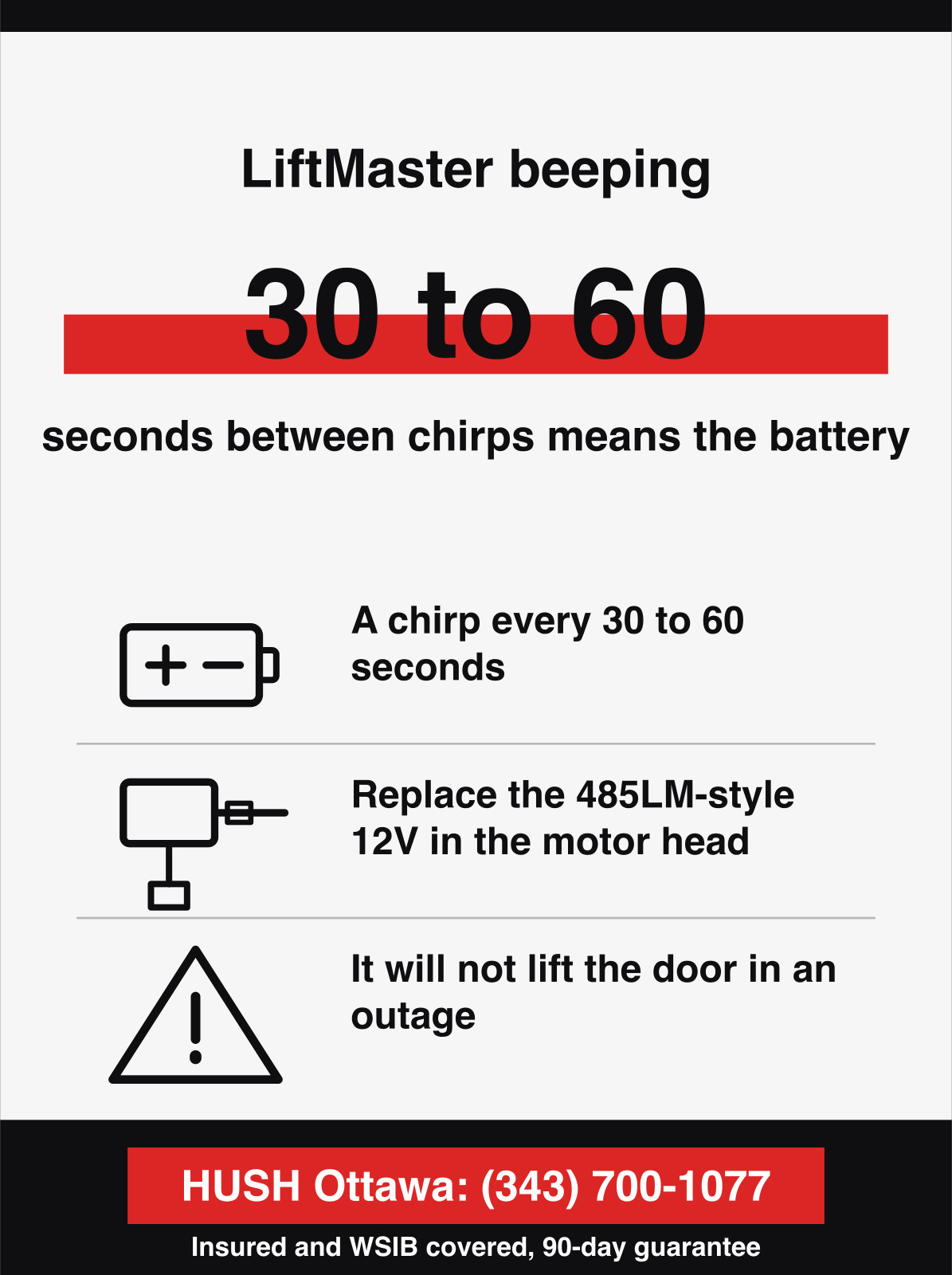

Why is my LiftMaster beeping?
A LiftMaster that beeps or chirps every 30 to 60 seconds is reporting a dead or dying battery-backup battery, not a broken opener. The motor still runs on house power, but the backup cell that lifts the door during an outage has lost its charge and needs replacing.
LiftMaster added battery backup so the door still opens when the power is out. That matters during an Ottawa ice storm or a summer thunderstorm.
The opener watches the battery’s health and chirps when it can no longer hold a charge. The chirp repeats on purpose, so you do not miss it. You may also see a red battery LED on the motor head or the wall control.
None of this means the opener has failed. For a wider view of warning lights and codes, see what an opener blink code means.
Which battery does my LiftMaster use?
Most battery-backup LiftMaster openers use a 12V sealed lead-acid battery, sold by LiftMaster as the 485LM, or an equivalent 12V 4 to 5Ah pack. Confirm the exact battery against your model number before you buy, because a few newer units use a different cell.
The 485LM is a sealed lead-acid brick about the size of a small cordless-drill battery, with a red and a black lead and a keyed plug. It snaps into a compartment in the motor head. The table below covers the common LiftMaster battery-backup families and what each one takes.
| LiftMaster family | Typical battery | Where it lives |
|---|---|---|
| 8550 and 8360 belt and chain | 485LM, 12V sealed lead-acid | Side or back panel of the motor head |
| 8160, 8165 chain drive | 485LM equivalent 12V pack | Clip-on cover on the motor head |
| WLED, 8500W wall mount | 485LM, 12V sealed lead-acid | Compartment beside the motor unit |
| Newer Security+ 2.0 LED units | 12V backup pack, check model | Bottom or side battery door |
If your motor head has no battery door at all, your model may not have backup battery support, and the chirp could instead be a different fault. In that case, read LiftMaster blink codes decoded to match the warning pattern to a cause.
How to replace the backup battery
Replacing a LiftMaster backup battery is a 10-minute job with one screwdriver. Unplug the opener, open the battery door on the motor head, unplug the dead 485LM, drop in the matching 12V battery red to red and black to black, then plug the opener back in and let it charge.

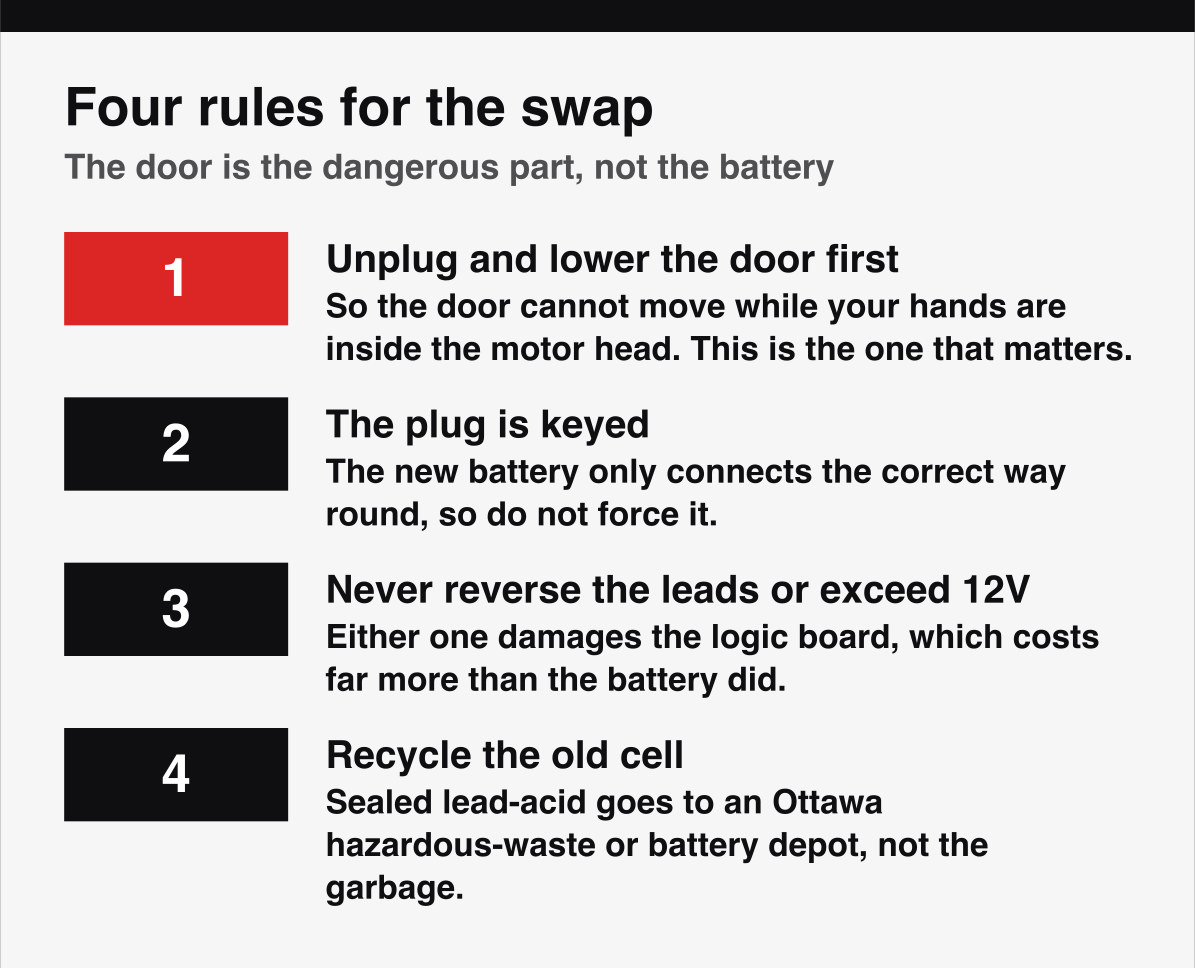

Follow the numbered steps at the top of this page in order. Unplug the opener and lower the door first, so it cannot move while your hands are inside the motor head.
The plug is keyed, so the new battery only connects the correct way. Never reverse the leads, and never fit a battery rated above 12V. Either one damages the logic board.
Take the old sealed lead-acid battery to an Ottawa hazardous-waste or battery-recycling depot, not the garbage.
How to stop the low-battery beeping after you replace it
To stop the beeping for good, replace the dead backup battery, because the chirp is a low-battery alert and not a setting you turn off. Once the opener charges a healthy 485LM battery, the chirp stops on its own, usually within a few minutes of reconnecting power.
You can often silence the alert while you wait for a replacement battery. On many LiftMaster units, holding the LOCK button on the wall control mutes the chirp until the next cycle. Pressing and holding the learn button on the motor head does the same.
Unplugging the opener also stops the noise, but then the door will not open on power at all.
None of these are fixes. The chirp returns until a fresh battery goes in, so treat a mute as a pause.

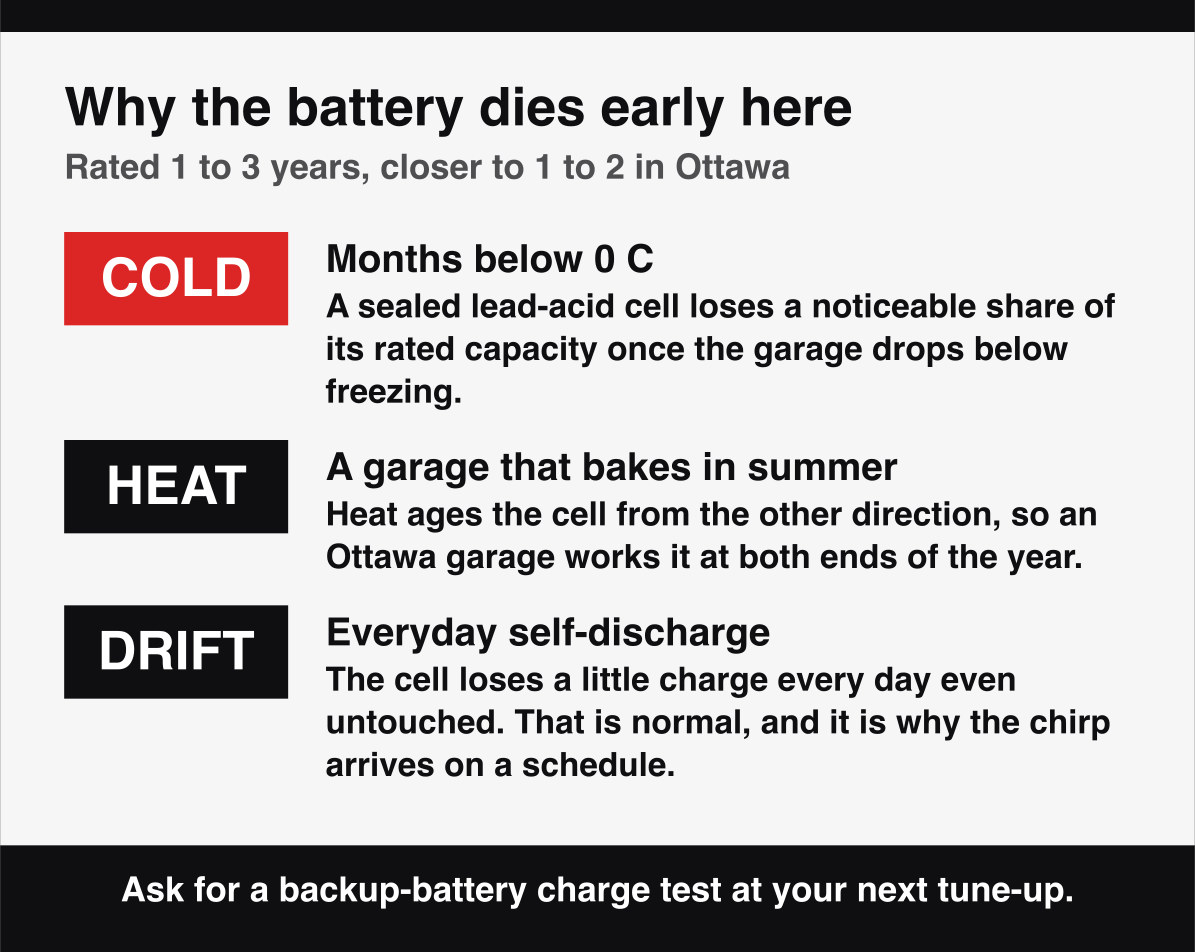

How long does a backup battery last before it beeps again?
A LiftMaster backup battery lasts 1 to 3 years before it stops holding a charge. In cold Ottawa garages, where winter air sits well below 0C, sealed lead-acid batteries lose capacity faster, so many homeowners here replace theirs closer to the one to two year mark.
Cold is the main reason batteries fail early in this climate. A sealed lead-acid cell loses a noticeable share of its rated capacity once the garage drops below freezing, and an unheated Ottawa garage spends months under 0C.
Heat shortens battery life too. A summer garage that bakes in the sun ages the cell from the other direction. The battery also self-discharges a little every day, which is normal.
Ask your technician to test the backup battery’s charge at your next tune-up and 25-point inspection. A weak cell then gets caught before it strands you in an outage.
Battery replaced but still beeping?
A LiftMaster that still beeps on a fresh battery has a charging fault, not a battery fault. If you installed a fresh 485LM battery and the opener still beeps or shows a red light, the problem is no longer the battery itself. The likely culprits are a loose or reversed connector, a battery that has not finished charging, or a charging circuit on the logic board that has failed.
First, give a brand-new battery up to 24 hours to reach full charge, because the opener may keep flagging a low pack until it is topped up. Recheck that the red and black leads are fully seated on matching terminals and that the plug clicked home. If the chirp or red LED persists after a full day of charging on a confirmed-good battery, the battery-charging circuit on the control board is usually at fault, and that needs a technician rather than another battery.
HUSH services LiftMaster openers across Ottawa and Gatineau. Our factory-trained technicians carry common parts on the truck, and we confirm whether you need a battery, a logic board or a full opener. No guesswork, no overtime fees.
Book LiftMaster opener repair in Ottawa and we bring the battery and the meter on the same visit. For every other badge, see all the garage door openers we repair.
On an older pre-myQ unit that keeps throwing faults, ask about a smart myQ opener installation. You then get a phone alert the next time the battery runs low.
Call HUSH at (343) 700-1077, backed by our 90-day Done-Right Guarantee.
