How to Program a Garage Door Opener Remote (Any Brand)
By Omar, Factory-Trained Technician· Updated

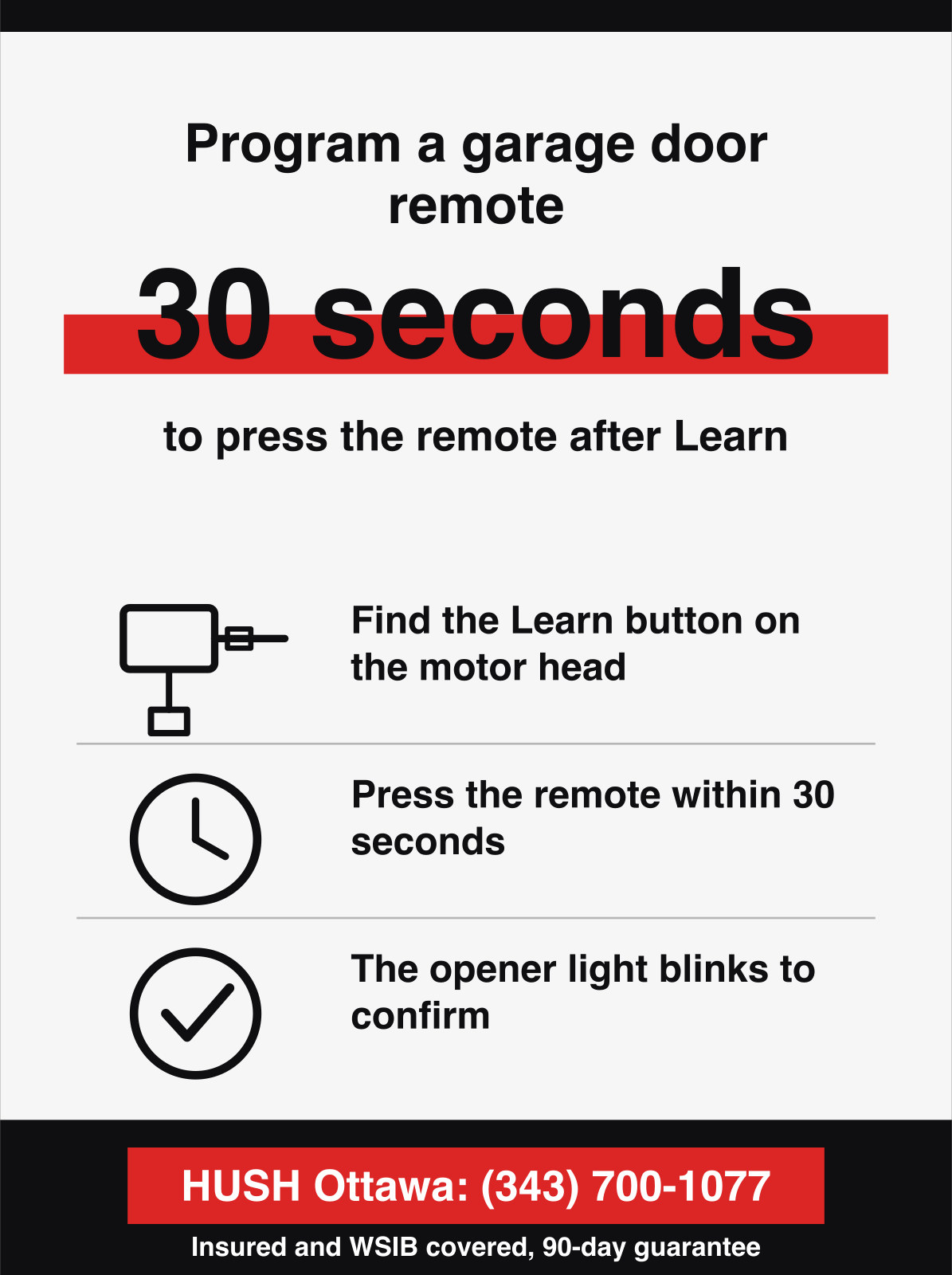

To program a garage door remote, find the Learn button on the motor head, press and release it, then press your remote button within 30 seconds. The opener light blinks to confirm.
Do this, in order
-
Find the Learn button on the motor head
Set up a ladder and remove or lift the light lens on the powered opener. The Learn button is a small colored square, purple, yellow, orange, red, green, or black, usually next to an LED near the antenna wire.
-
Press and release the Learn button
Press the Learn button once and let go. An LED next to it lights up, which means the opener is in learn mode and waiting to memorize a new remote. You usually have about 30 seconds.
-
Press the remote button you want to use
Within 30 seconds, press and hold the remote button for one to two seconds, then release. Press it a second time if the manual says to. The opener confirms by blinking its work light or clicking twice.
-
Test the new remote
Step away from the opener and press the programmed remote button. The door should open or close. If it works, you are done. If nothing happens, the learn window timed out, so repeat the steps.
-
Repeat for each remote and keypad
Program every remote, visor clip, and the exterior keypad one at a time using the same Learn-button steps. The opener stores many codes, so each device keeps its own button without erasing the others.
Stuck, or the door is under spring tension? Stop and call (343) 700-1077.
How do I program a new remote?
To program a new remote, find the Learn button on the opener’s motor head, press and release it so an LED lights, then press your remote button within 30 seconds. The opener blinks its light or clicks to confirm. The full process takes under two minutes and needs no tools beyond a ladder.
Every major brand uses the same idea. The motor head has a Learn button, a small coloured square next to a small LED. It usually hides under the light lens, or on the back panel near the antenna wire.
Pressing it puts the opener in learn mode, ready to memorise one new remote, keypad or wall control.
The steps at the top of this page work on almost any opener built in the last two decades. Only two things change between brands: the colour of the Learn button, and whether you press the remote once or twice.

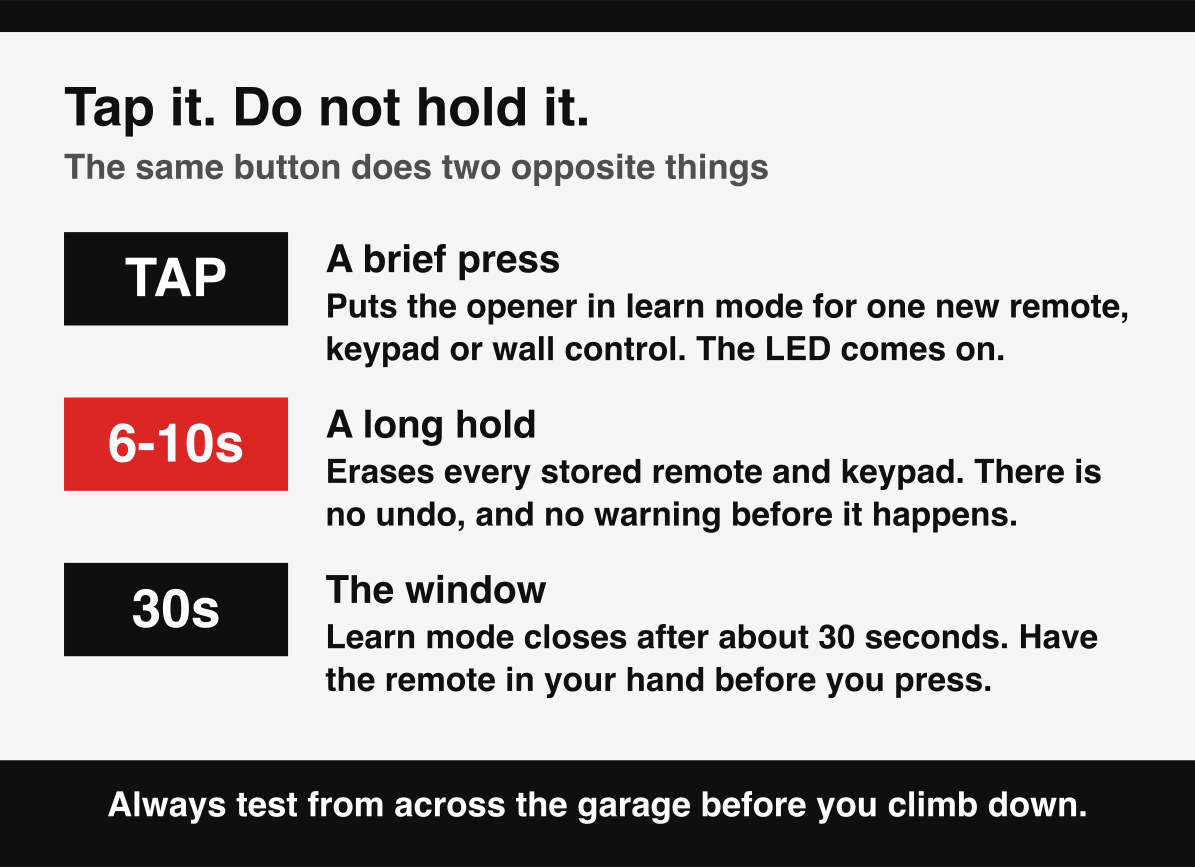

Three rules keep this simple. Tap the Learn button, do not hold it: six to ten seconds erases every stored remote instead. Work fast once the LED is on, because the window closes after about 30 seconds. Always test from across the garage before you climb down.
If the door does not respond, the likely culprit is a weak remote battery. That is a two-minute swap, covered in our LiftMaster remote battery guide.
Program a LiftMaster or Chamberlain remote
LiftMaster and Chamberlain share the same circuit board, so the steps match. Find the Learn button under the light lens on the motor head, press and release it once, then press your remote button twice within 30 seconds. The opener light blinks or clicks twice to confirm.

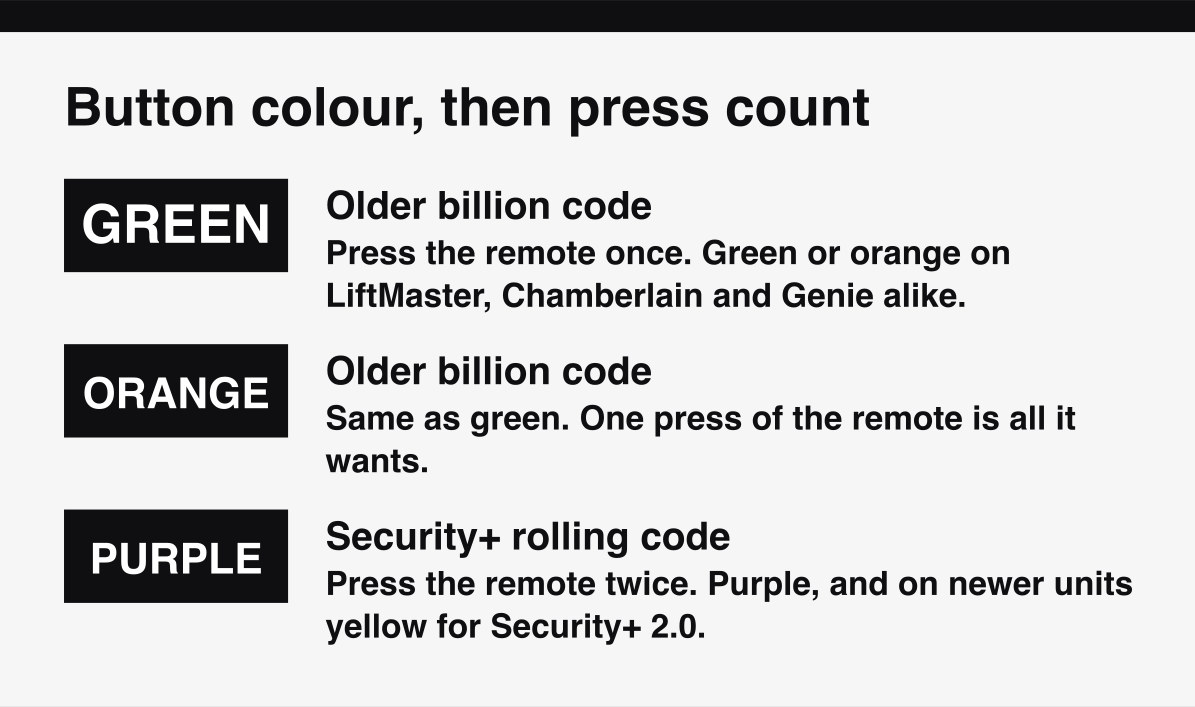

The Learn button colour tells you the technology and the security generation, which matters for pairing universal remotes:
| Learn button colour | System | What to know |
|---|---|---|
| Green or Red/Orange | Billion-code, older | Press once, then press the remote once |
| Purple | Security+, rolling code | Press once, then press the remote twice |
| Yellow | Security+ 2.0, newest | Press once, then press the remote once, antenna learn |
| Orange / Red-orange | Security+, mid-era | Press once, then press the remote twice |
On a yellow Learn button (Security+ 2.0), you can also program some accessories by holding the remote near the yellow antenna while the opener is in learn mode. If you press the yellow button and hold it for six seconds until the LED goes out, you have erased every remote, so be deliberate. After programming, test from outside the garage.
A LiftMaster or Chamberlain that blinks its work light in a repeating pattern is throwing a fault, not a programming error. Decode it with our guide to what an opener blink code means.
Program a Genie Intellicode remote
To program a Genie Intellicode remote, press and release the round Learn or Program button on the motor head. On most models it is purple, or marked with a wrench. Hold until the LED glows.
Then press the remote button twice within 30 seconds. The LED blinks and the opener clicks to confirm the code is saved.
Genie openers use a system called Intellicode, a rolling code that changes the signal after every use for security. The Learn button on most Genie units is round rather than square, located on the back of the powerhead or behind the light lens. On some models you press the Program Set button once and watch a blue or amber LED; on others you press it twice. If the LED never lights when you press it, the opener may be in a locked or vacation mode, so check the wall console first.
Genie also sells a popular universal remote that learns LiftMaster, Chamberlain, Craftsman, and many other brands, which is handy when an original remote is discontinued. If a freshly programmed Genie remote is ignored and the opener flashes a red light, that is a fault code, not a pairing miss. Our note on a Genie red light flashing explains it.
Program a Craftsman remote
Craftsman openers are built by Chamberlain, so they program exactly like a LiftMaster. Find the Learn button on the back of the motor head, often under the light lens, press and release it, then press your Craftsman remote button twice within 30 seconds. The light blinks to confirm.
The Learn button colour follows the same chart as LiftMaster and Chamberlain above. Green or orange is the older billion-code system, where you press the remote once. Purple is Security+ rolling code, where you press it twice.
A telescoping antenna wire usually hangs from the same corner of the powerhead. Because the boards are shared, a Sears Craftsman opener will also accept a Chamberlain, LiftMaster, or Genie universal remote, which solves the problem now that Sears no longer sells original Craftsman remotes. Keep the press brief, since a long hold on a Craftsman Learn button wipes every stored code.
Program an exterior keypad
To program a wireless keypad, choose a four-digit PIN and enter it on the keypad, then press the Learn button on the motor head within 30 seconds. Enter your PIN once more and press Enter. The opener light blinks to confirm, and the keypad now opens the door from outside.
The key sequence varies a little by brand. On most LiftMaster and Chamberlain keypads, enter your PIN, then press and hold Enter or the asterisk until the opener light blinks. On a Genie keypad, press PROG, enter the PIN, press PROG again, then push the motor-head Learn button.
Always test the PIN from outside before you trust it.
A keypad is the most weather-exposed accessory on the door. One that worked yesterday and fails today usually has a dead 9-volt or coin battery, corroded contacts, or sun-faded buttons. It has not lost its program. We cover that under garage door remote and keypad repair.
How to erase every remote and keypad from the opener
To erase every remote, press and hold the Learn button on the motor head for about six to ten seconds until the LED turns off, then release it. This wipes all stored remotes, keypads, and wall controls at once, so you can clear a lost remote or a previous owner’s devices for security.
Erasing matters most in two situations. When you buy a house, the prior owner may still hold working remotes, so wiping the memory locks them out. When you lose a remote or have one stolen, erasing every code and reprogramming the survivors makes the missing one useless.
After the long press the opener is blank. Reprogram each remote and keypad one at a time, using the Learn-button steps above.
On a yellow Security+ 2.0 LiftMaster, the same long hold also resets the antenna learn. Be ready to reprogram before you erase.
Remote still not working?
If the remote still will not work after reprogramming, the cause is 1 of 4. A dead battery, a damaged remote, a stuck wall-control lock mode, or a failing receiver inside the opener. Replace the battery first, then confirm lock mode is off, before assuming the remote or opener has failed.
Run this list in order. First, swap the remote battery and reseat it firmly. That is the single most common fix.
Second, check the wall console for a lock or vacation mode, which disables every remote on purpose. Hold the LOCK button until its LED stops flashing.
Third, test a second remote or the keypad. If those work, the fault is the one handheld remote, not the opener.
Fourth, if no remote works but the wall button does, the opener’s radio receiver or logic board may be failing. That is a repair, not a reprogram.
When the trail ends at the opener itself, that is our work. HUSH handles garage door remote and keypad repair as a small same-day job. Where the motor head has lost its programming memory, that is motor head repair.
